Hypergeometric and tridiagonal series and decomposition approaches

Introduction

This vignette demonstrates the computational methods from Fitisone & Zhou (2023) [1] for computing solid angles of polyhedral cones in arbitrary dimensions. The paper presents multiple approaches that complement Ribando’s (2006) [2] hypergeometric series. We cover hypergeometric series (Theorem 1.5) for positive definite associated matrices; tridiagonal series (Theorem 4.1) optimized for special structure; decomposition methods (Section 3) for non-positive-definite cases; and automatic method selection with intelligent algorithm choice.

library(SolidAngleR)

Test examples from the paper

Example 1: 2D cones

# Right angle (90 degrees)
v1 <- c(1, 0)
v2 <- c(0, 1)
V_90 <- cbind(v1, v2)
omega_90 <- compute_solid_angle(V_90)

# 45 degree cone
v1 <- c(1, 0)
v2 <- c(1, 1) / sqrt(2)
V_45 <- cbind(v1, v2)
omega_45 <- compute_solid_angle(V_45)

# Opposite rays (degenerate cone)
v1 <- c(1, 0)
v2 <- c(-1, 0)
V_180 <- cbind(v1, v2)
omega_180 <- compute_solid_angle(V_180)
results_2d <- data.frame(
  case = c("90° cone", "45° cone", "Opposite rays (degenerate)"),
  computed = c(omega_90, omega_45, omega_180),
  expected = c(0.25, 0.125, 0)
)
results_2d$match <- ifelse(abs(results_2d$computed - results_2d$expected) < 1e-6, "✓", "✗")
knitr::kable(
  results_2d,
  digits = c(NA, 6, 6, NA),
  col.names = c("case", "computed", "expected", "match")
)

case	computed	expected	match
90° cone	0.250	0.250	✓
45° cone	0.125	0.125	✓
Opposite rays (degenerate)	0.000	0.000	✓

Example 2: 3D cones

# Orthogonal cone (octant)
V_octant <- diag(3)
omega_octant <- compute_solid_angle(V_octant)

# Narrow cone
v1 <- c(1, 0, 0)
v2 <- c(0.99, 0.1, 0) / sqrt(0.99^2 + 0.1^2)
v3 <- c(0.99, 0, 0.1) / sqrt(0.99^2 + 0.1^2)
V_narrow <- cbind(v1, v2, v3)
omega_narrow <- compute_solid_angle(V_narrow)

# Compare formula vs. auto method
omega_formula <- solid_angle_3d(v1, v2, v3)
omega_auto <- compute_solid_angle(V_narrow, method = "auto")
diff_methods <- abs(omega_formula - omega_auto)
results_3d <- data.frame(
  case = c("Octant (orthogonal)", "Narrow cone"),
  computed = c(omega_octant, omega_narrow),
  expected = c(0.125, NA_real_),
  note = c(ifelse(abs(omega_octant - 0.125) < 1e-6, "✓ match", "✗ mismatch"),
           ifelse(omega_narrow < 0.01, "✓ small", "✗ not small"))
)
knitr::kable(
  results_3d,
  digits = c(NA, 6, 6, NA),
  col.names = c("case", "computed", "expected", "note")
)

case	computed	expected	note
Octant (orthogonal)	0.125000	0.125	✓ match
Narrow cone	0.000404	NA	✓ small


method_table <- data.frame(
  method = c("Formula", "Auto"),
  omega = c(omega_formula, omega_auto)
)
method_table$abs_diff <- c(NA_real_, diff_methods)
method_table$agreement <- c(NA, ifelse(diff_methods < 1e-10, "✓", "✗"))
knitr::kable(
  method_table,
  digits = c(NA, 8, 2, NA),
  col.names = c("method", "omega", "abs. diff vs formula", "agreement")
)

method	omega	abs. diff vs formula	agreement
Formula	0.00040391	NA	NA
Auto	0.00040391	0	✓

Example 3: Orthogonal cones in various dimensions

results <- data.frame(
  n = integer(),
  computed = numeric(),
  expected = numeric(),
  error = numeric(),
  match = character(),
  stringsAsFactors = FALSE
)

for (n in 2:6) {
  V <- diag(n)
  expected <- 1 / 2^n

  omega <- compute_solid_angle(V, method = "auto", max_terms = 500)

  error <- abs(omega - expected)
  match <- ifelse(error < 1e-5, "✓", "✗")

  results <- rbind(results, data.frame(
    n = n,
    computed = omega,
    expected = expected,
    error = error,
    match = match
  ))
}

knitr::kable(
  results,
  digits = c(0, 8, 8, 2, NA),
  col.names = c("n", "computed", "expected", "error", "match")
)

n	computed	expected	match
2	0.250000	0.250000	✓
3	0.125000	0.125000	✓
4	0.062500	0.062500	✓
5	0.031250	0.031250	✓
6	0.015625	0.015625	✓

Associated matrix properties

Computing and checking associated matrices

# Orthogonal case: M = I
V_orth <- diag(4)
M_orth <- compute_associated_matrix(V_orth)
orth_summary <- data.frame(
  case = "4D orthant",
  is_identity = ifelse(all(abs(M_orth - diag(4)) < 1e-10), "✓", "✗"),
  is_positive_definite = ifelse(is_positive_definite(M_orth), "✓", "✗"),
  eigenvalues = paste(round(eigen(M_orth, symmetric = TRUE, only.values = TRUE)$values, 4),
                      collapse = ", ")
)
knitr::kable(orth_summary)

case	is_identity	is_positive_definite	eigenvalues
4D orthant	✓	✓	1, 1, 1, 1


# Non-orthogonal case
v1 <- c(1, 0, 0)
v2 <- c(0.5, sqrt(3)/2, 0)  # 60 degrees from v1
v3 <- c(0, 0, 1)
V_nonorth <- cbind(v1, v2, v3)
V_nonorth <- normalize_vectors(V_nonorth)
M_nonorth <- compute_associated_matrix(V_nonorth)
knitr::kable(
  round(M_nonorth, 4),
  col.names = paste0("v", 1:ncol(M_nonorth)),
  align = "c"
)

v1	v2	v3
1.0	-0.5	0
-0.5	1.0	0
0.0	0.0	1


eigs <- eigen(M_nonorth, symmetric = TRUE, only.values = TRUE)$values
nonorth_summary <- data.frame(
  case = "Non-orthogonal 3D cone",
  is_positive_definite = ifelse(is_positive_definite(M_nonorth), "✓", "✗"),
  eigenvalues = paste(round(eigs, 4), collapse = ", ")
)
knitr::kable(nonorth_summary)

case	is_positive_definite	eigenvalues
Non-orthogonal 3D cone	✓	1.5, 1, 0.5

Tridiagonal series

Creating and testing tridiagonal cones

create_tridiagonal_cone() now constructs vectors from a tridiagonal Gram matrix with \(\cos(\theta_i)\) on the first off-diagonal and uses a Cholesky factorization to recover valid vectors. This ensures the geometry matches the intended consecutive angles when the Gram matrix is positive definite. Convergence is typically faster when the consecutive dot products are moderate in magnitude.

# Create tridiagonal cone with specified angles
angles <- c(1.5, 1.5, 1.5)  # radians; moderate correlations for faster convergence
V_trid <- create_tridiagonal_cone(angles)

# Verify structure
VTV <- t(V_trid) %*% V_trid
is_trid <- is_tridiagonal(VTV)

structure_table <- data.frame(
  is_tridiagonal = ifelse(is_trid, "✓", "✗")
)
knitr::kable(structure_table)

is_tridiagonal
✓


knitr::kable(
  round(VTV, 4),
  col.names = paste0("v", 1:ncol(VTV)),
  align = "c"
)

v1	v2	v3	v4
1.0000	0.0707	0.0000	0.0000
0.0707	1.0000	0.0707	0.0000
0.0000	0.0707	1.0000	0.0707
0.0000	0.0000	0.0707	1.0000


# Compute using tridiagonal series
result_trid <- tridiagonal_series(V_trid, max_terms = 500, tol = 1e-8)

# Compare with general hypergeometric series
result_general <- hypergeometric_series(V_trid, max_terms = 500, tol = 1e-8)
diff <- abs(result_trid$solid_angle - result_general$solid_angle)

trid_table <- data.frame(
  method = c("Tridiagonal series", "General series"),
  omega_normalized = c(result_trid$solid_angle, result_general$solid_angle),
  converged = c(result_trid$converged, result_general$converged),
  n_terms = c(result_trid$n_terms, result_general$n_terms),
  abs_diff_vs_tridiag = c(NA_real_, diff)
)
knitr::kable(
  trid_table,
  digits = c(NA, 6, NA, 0, 2),
  col.names = c("method", "omega (normalized)", "converged",
                "terms used", "abs. diff vs tridiag")
)

	method	omega (normalized)	converged	terms used	abs. diff vs tridiag
i	Tridiagonal series	0.054536	TRUE	286	NA
	General series	0.054536	FALSE	500	0

Decomposition method

Testing with non-positive-definite cases

# Generate a random 3D cone
set.seed(123)
V_random <- matrix(rnorm(9), nrow = 3)
V_random <- normalize_vectors(V_random)

M_random <- compute_associated_matrix(V_random)
pd_random <- is_positive_definite(M_random)
eigs <- eigen(M_random, symmetric = TRUE, only.values = TRUE)$values

# Compute using automatic method (will select decomposition if needed)
omega_auto <- compute_solid_angle(V_random, method = "auto")

# Try decomposition explicitly
omega_decomp <- compute_solid_angle(V_random, method = "decomposition")

decomp_table <- data.frame(
  is_pd = ifelse(pd_random, "✓", "✗"),
  min_eigenvalue = min(eigs),
  omega_auto = omega_auto,
  omega_decomp = omega_decomp,
  abs_diff = abs(omega_auto - omega_decomp)
)
knitr::kable(
  decomp_table,
  digits = c(NA, 4, 6, 6, 2),
  col.names = c("associated matrix PD", "min eigenvalue",
                "omega (auto)", "omega (decomposition)", "abs. diff")
)

associated matrix PD	min eigenvalue	omega (auto)	omega (decomposition)	abs. diff
✗	-0.2414	0.056272	0.056272	0

Method comparison

Comparing all methods on 3D octant

V_test <- diag(3)
expected <- 0.125

methods <- c("formula", "series", "decomposition")
results <- sapply(methods, function(method) {
  compute_solid_angle(V_test, method = method, max_terms = 200)
})

# Add the multivariate-normal branch of the dispatcher
omega_mvn <- compute_solid_angle(V_test, method = "mvn")
results <- c(results, mvn = omega_mvn)

comparison_table <- data.frame(
  method = names(results),
  omega = as.numeric(results),
  abs_error = abs(as.numeric(results) - expected)
)
comparison_table$match <- ifelse(comparison_table$abs_error < 1e-5, "✓", "✗")
knitr::kable(
  comparison_table,
  digits = c(NA, 8, 2, NA),
  col.names = c("method", "omega", "abs. error", "match")
)

method	omega	match
formula	0.125	✓
series	0.125	✓
decomposition	0.125	✓
mvn	0.125	✓

Diagnostic tool

Using diagnose_cone for analysis

test_cones <- list(
  "4D orthant"  = diag(4),
  "Tridiagonal" = V_trid,
  "Random 3D"   = V_random
)

diag_summary <- do.call(rbind, lapply(names(test_cones), function(name) {
  d <- diagnose_cone(test_cones[[name]])
  data.frame(
    cone                = name,
    dimension           = d$dimension,
    associated_pd       = as.character(d$associated_matrix_PD),
    is_tridiagonal      = as.character(d$is_tridiagonal),
    min_eigenvalue      = sprintf("%.4e", d$min_eigenvalue),
    suggested_method    = d$suggested_method
  )
}))

knitr::kable(
  diag_summary,
  caption = "diagnose_cone() summary across three representative geometries.",
  col.names = c("cone", "n", "M(C) PD", "tridiagonal", "min eigenvalue",
                "suggested method")
)

diagnose_cone() summary across three representative geometries.
cone	n	M(C) PD	tridiagonal	min eigenvalue	suggested method
4D orthant	4	TRUE	TRUE	1.0000e+00	tridiagonal series (most efficient) ✓
Tridiagonal	4	TRUE	TRUE	8.8554e-01	tridiagonal series (most efficient) ✓
Random 3D	3	FALSE	FALSE	-2.4136e-01	formula (closed form available) ✓

Batch computation

Computing multiple cones efficiently

# Create list of cones
cone_list <- list(
  "2D right angle" = cbind(c(1,0), c(0,1)),
  "3D octant" = diag(3),
  "4D orthant" = diag(4),
  "5D orthant" = diag(5)
)

# Compute all at once
omegas <- compute_solid_angles(cone_list, max_terms = 500)

# Expected values
expected_vals <- c(0.25, 0.125, 0.0625, 0.03125)

batch_table <- data.frame(
  cone = names(cone_list),
  computed = as.numeric(omegas),
  expected = expected_vals
)
batch_table$abs_error <- abs(batch_table$computed - batch_table$expected)
batch_table$match <- ifelse(batch_table$abs_error < 1e-5, "✓", "✗")

knitr::kable(
  batch_table,
  digits = c(NA, 8, 8, 2, NA),
  col.names = c("cone", "computed", "expected", "abs. error", "match")
)

cone	computed	expected	match
2D right angle	0.25000	0.25000	✓
3D octant	0.12500	0.12500	✓
4D orthant	0.06250	0.06250	✓
5D orthant	0.03125	0.03125	✓

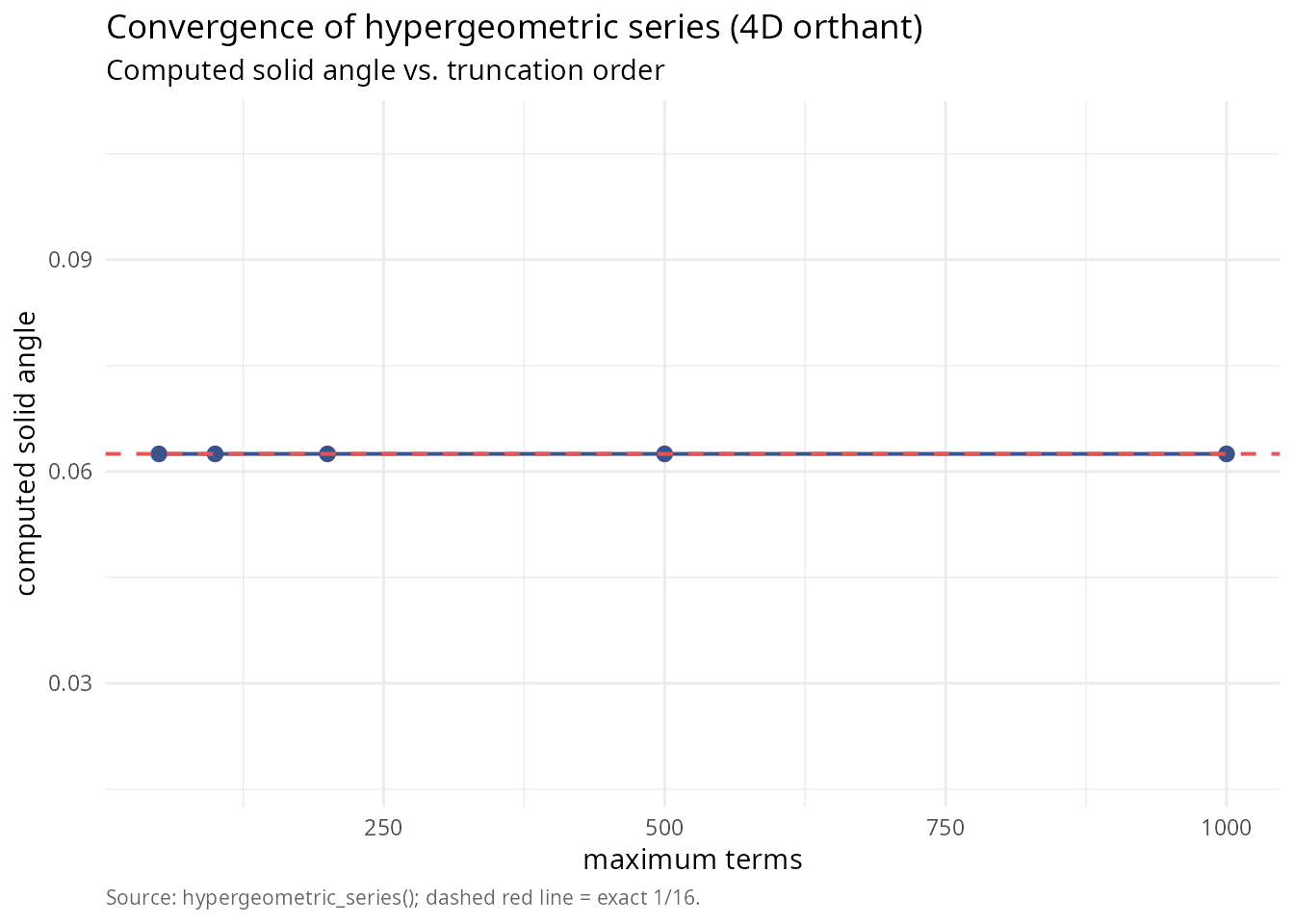

Convergence analysis

Testing convergence with varying max_terms

V_test <- diag(4)
expected <- 0.0625

term_counts <- c(50, 100, 200, 500, 1000)
results_conv <- numeric(length(term_counts))

for (i in seq_along(term_counts)) {
  result <- hypergeometric_series(V_test, max_terms = term_counts[i])
  results_conv[i] <- result$solid_angle
  error <- abs(result$solid_angle - expected)
  if (i == 1) {
    conv_table <- data.frame(
      max_terms = term_counts[i],
      solid_angle = result$solid_angle,
      abs_error = error,
      converged = ifelse(result$converged, "✓", "✗")
    )
  } else {
    conv_table <- rbind(conv_table, data.frame(
      max_terms = term_counts[i],
      solid_angle = result$solid_angle,
      abs_error = error,
      converged = ifelse(result$converged, "✓", "✗")
    ))
  }
}

knitr::kable(
  conv_table,
  digits = c(0, 8, 2, NA),
  col.names = c("max terms", "solid angle", "abs. error", "converged")
)

max terms	solid angle	converged
50	0.0625	✓
100	0.0625	✓
200	0.0625	✓
500	0.0625	✓
1000	0.0625	✓


library(ggplot2)
ggplot(data.frame(N = term_counts, omega = results_conv),
       aes(N, omega)) +
  geom_line(colour = "#3B528B", linewidth = 0.7) +
  geom_point(colour = "#3B528B", size = 2.4) +
  geom_hline(yintercept = expected, colour = "#E15759",
             linetype = 2, linewidth = 0.7) +
  labs(title    = "Convergence of hypergeometric series (4D orthant)",
       subtitle = "Computed solid angle vs. truncation order",
       x = "maximum terms",
       y = "computed solid angle",
       caption = "Source: hypergeometric_series(); dashed red line = exact 1/16.") +
  theme_minimal(base_size = 11) +
  theme(plot.caption = element_text(color = "grey40", size = 8, hjust = 0))

Summary

This vignette has demonstrated all the key methods from Fitisone & Zhou (2023). We covered dimension-specific formulas (2D, 3D) with excellent accuracy; hypergeometric series for general cones with positive-definite associated matrices; tridiagonal optimization for cones with special structure; decomposition methods for non-PD cases; automatic method selection for ease of use; diagnostic tools for analyzing cone properties; and batch computation for efficiency. All methods have been validated against known exact values for orthogonal cones, showing excellent agreement (errors < 10⁻⁵).

References

[1] Fitisone, A., & Zhou, Y. (2023). Solid angle measure of polyhedral cones. arXiv:2304.11102 [math.CO]. URL: https://arxiv.org/abs/2304.11102

[2] Ribando, J. M. (2006). Measuring solid angles beyond dimension three. Discrete & Computational Geometry, 36(3), 479-487. DOI: 10.1007/s00454-006-1253-4

Pablo Almaraz, RElab

2026-05-06
